RC1/2″ Inlet
RC1/2″ Outlet
1.6 MPa Pressure
1.5°C Minimum Temp
85°C Maximum Temp
91–93 ml Start Volume
800 L/H Discharge
125 mm Width
172 mm Height
180 mm Length
Description

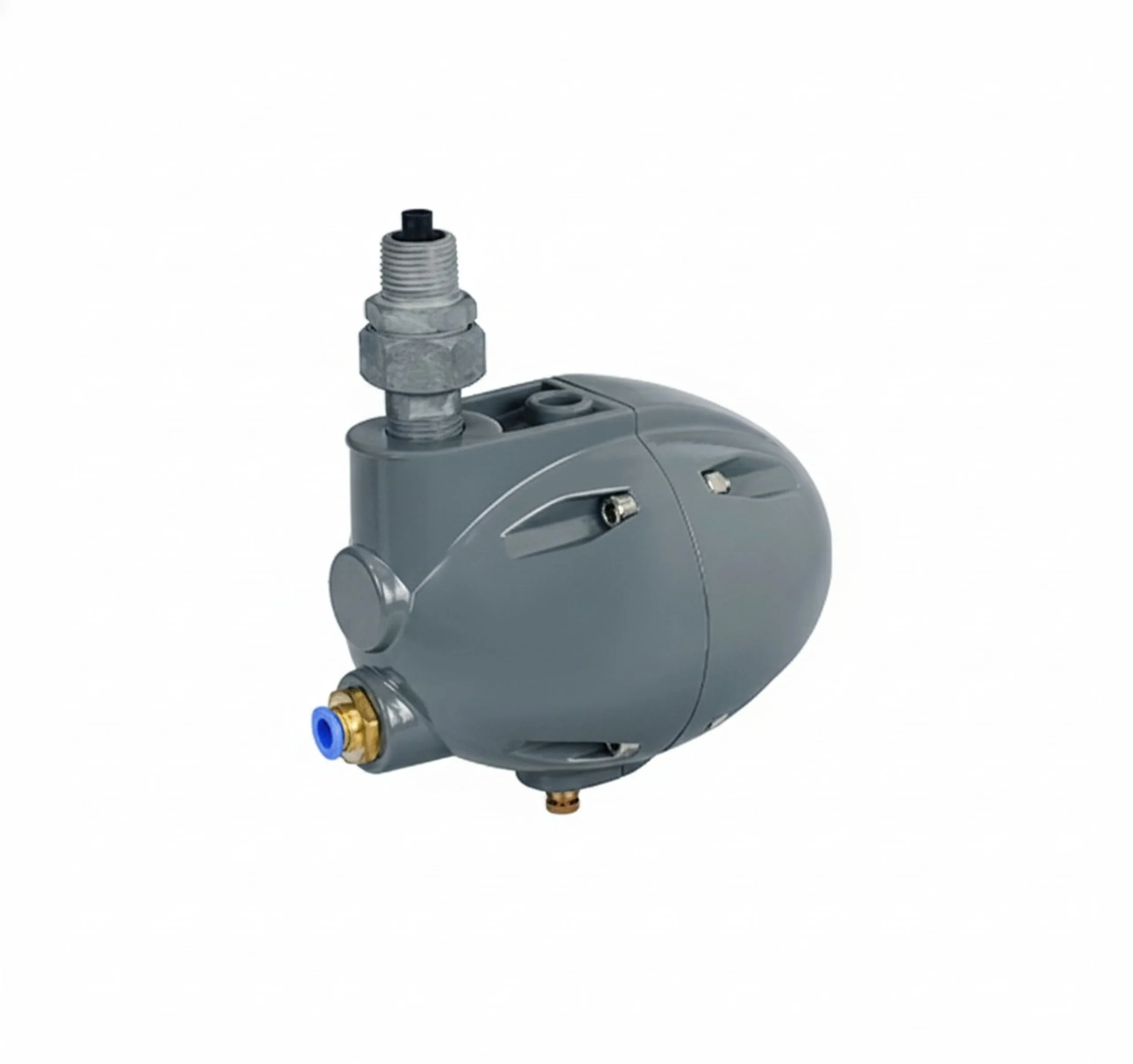

The Drain Valve HAD20 Automatic Condensate Drain Valve is a high-performance, mechanical float-type drain designed for the automatic discharge of condensate from compressed air systems. Unlike electronic timer drains, this pneumatic valve operates with zero air loss, ensuring your compressor runs at peak efficiency while saving energy.
Key Features
-
Zero Air Loss: Only opens when condensate is present, preventing costly compressed air leaks.
-
No Electricity Needed: Operates purely on pneumatic pressure and mechanical buoyancy.
-
Robust Construction: Features a durable aluminum alloy shell with a corrosion-resistant powder coating.
-
Large Discharge Capacity: Capable of handling up to 400L/H, making it suitable for large-scale industrial systems.
-
Manual Override: Includes a manual test/drain button for easy maintenance and system checks.
